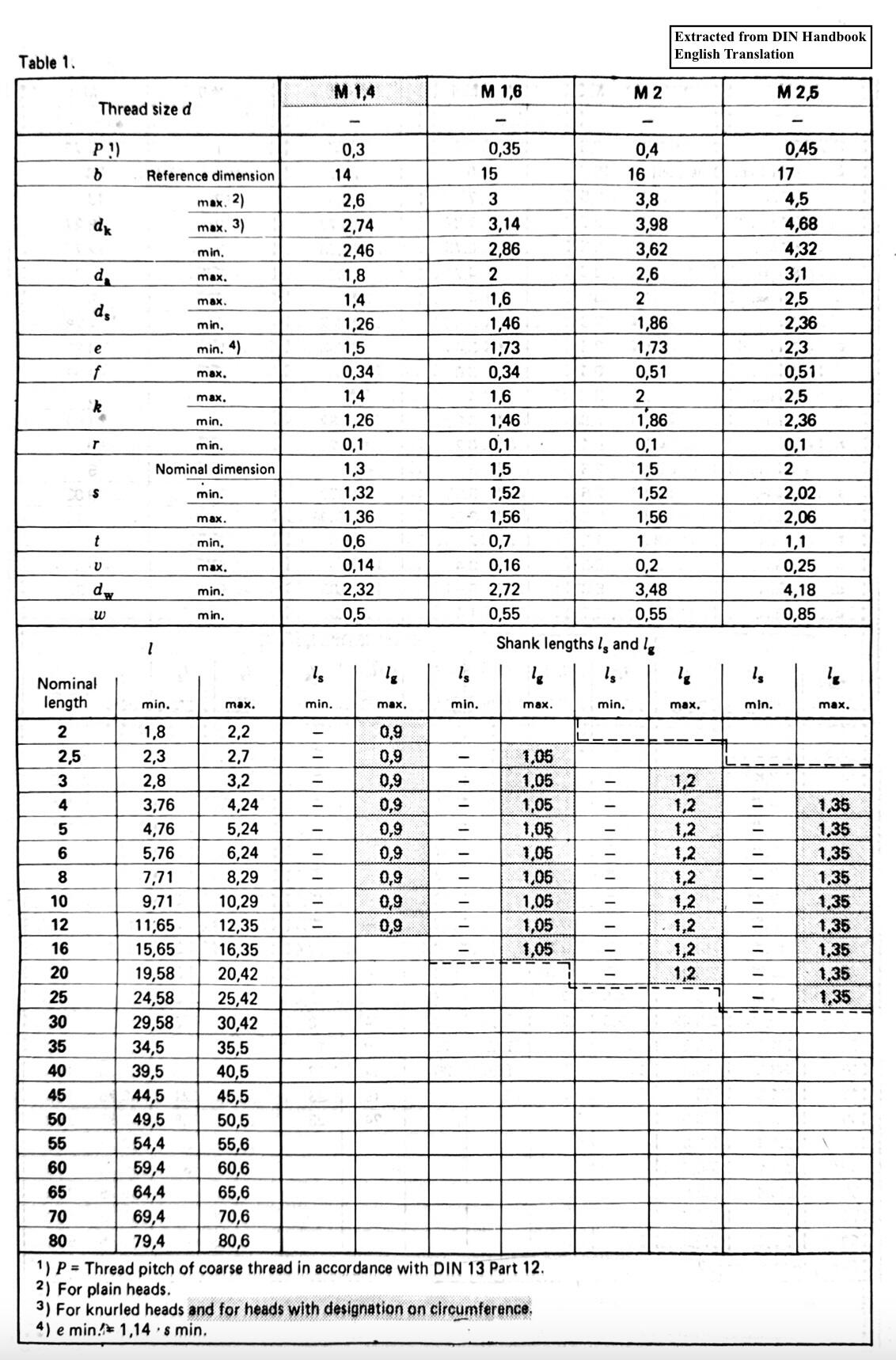

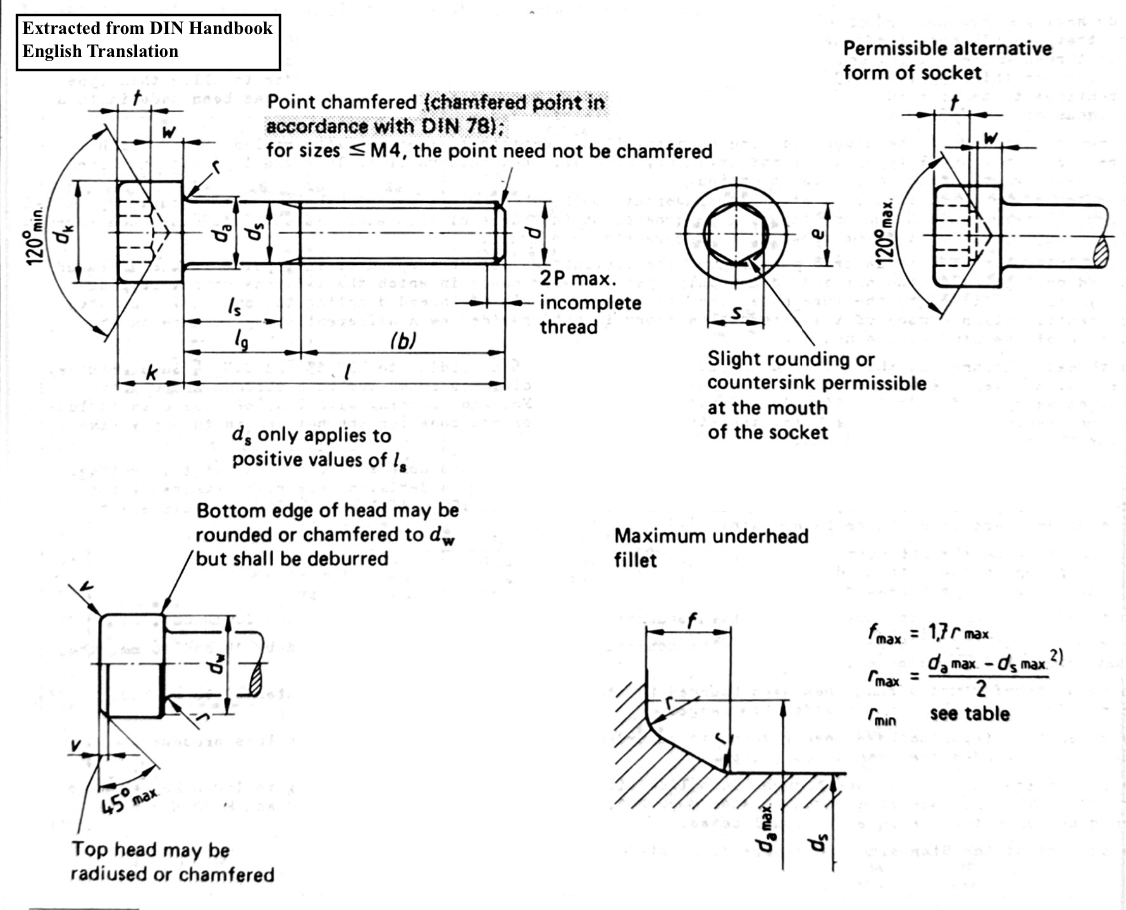

DIN 912 / ISO 4762
a) DIN 912 (ISO 4762) 是指公制內六角螺絲的特定標準, 也稱為杯頭螺絲, 具有圓柱形頭部, 中心有六角形凹槽 (Socket), 可以使用內六角扳手 (Hex Key or Allen Wrench) 將其旋緊或鬆開. 這些螺絲通常用於需要高拉伸強度的各種應用。
b) 帶滾花頭的內六角螺絲是 DIN 912 的變化型，頭部周圍具有滾花紋理表面。這種設計提供了更好的抓握力，便於手動操作或調整，特別適用於需要頻繁調整的應用場合。
| Description | |
|---|---|
| Material | Stainless steel / Carbon steel class 8.8/10.9/12.9 |
| Driving recess type | Hexalobular internal drive (6 lobe) |
| Head Type | Cylindrical head |
| Thread Type | Machine screw thread |
| Surface color | Clean finish / Zinc finish / Black oxide / Phosphate coating |
| Thread size / diameter | M3 to M12 |
| Field of application | Automotive / Electronics / Machinery |
| Drive variations | Hexagon socket drive |
